Aldridge, West Midlands

Loft Conversion Cinema Room

System
5.2.4 Dolby Atmos
Auto-masking screen
Investment
About £26,200

A loft conversion can hold a proper cinema if the screen, seating and speakers are planned around the roof line. This Aldridge loft was split into a home office and library and a 5.2.4 Dolby Atmos entertainment room on M&K Sound speakers, with an auto-masking screen for both 16:9 and cinemascope films, the AV rack hidden in the eaves voids and motorised blackout Velux blinds for daytime viewing.

This loft in Aldridge, West Midlands was converted into two rooms: a home office and library, and a family entertainment room with a 5.2.4 Dolby Atmos system on M&K Sound speakers. An Epson projector fills a Screen Research screen that masks itself to suit both 16:9 and cinemascope pictures, and motorised Velux blackout blinds make the room usable in daylight. The AV and control cost £24,300 and installation £1,920, about £26,200 in all.

Virtus Integration installed the AV, and Charles Grosvenor carried out the construction work.

The brief: two rooms under one roof

The loft had to do two jobs. One part became a home office and library. The other became a room where the family watches films, television and sport together. In a loft, the screen, the seating and the speakers all have to be planned around the roof line, because the sloping ceiling decides where a screen can go and where the height speakers can sit.

Two decisions kept the entertainment room clean. The AV rack is hidden in the void spaces in the eaves, so there is no equipment cabinet in the room. The seating is the client's own recliners.

Picture: a screen that changes shape

The projector is an Epson EH-TW9400 Pro-UHD, and it shows onto a Screen Research 2-way auto-masking screen.

Television, sport and streaming menus are 16:9. Most feature films are wider, at 2.35:1 or 2.40:1. On a fixed screen, the part of the screen the picture doesn't use shows as bars above and below a film, or at the sides of a TV programme. With a projector those bars are dark grey rather than black, so the eye sees them. Masking panels move in to frame whatever is playing, so the picture always sits against a true black edge and looks sharper and higher in contrast.

Masking only works if the room is dark. Here the Velux roof windows have motorised blackout blinds, and the client says they black out the light well enough for daytime viewing.

Sound and control

RoleEquipment
Front left, centre and rightM&K IW950 in-wall
Surrounds2 × M&K IW85
Dolby Atmos height4 × M&K IW85
Subwoofers2 × M&K V10
Processing and amplificationDenon AVR-X3700H receiver
ControlControl4 EA3 with a Neeo remote
SourcesSky Q, Apple TV 4K, Xbox One X

5.2.4 means five speakers at ear level (three at the front, two surrounds), two subwoofers and four height speakers for Dolby Atmos. A single AV receiver drives the lot, and the system is run through Control4 with a Neeo remote.

Living with it: day, night and noise

A loft sits above the bedrooms, so the floor is the main path for sound to travel down into the house. This project put soundproofing into the floor underlay, and the client says it made a big difference: the family can watch at night while the children are asleep below.

The client's other advice was about how the room is thought of. They suggest treating it as a family multimedia room rather than a formal cinema, so it gets used every day. For more on planning a room that has to work for everyday watching as well as films, see our media room design guide.

What it cost

ItemCost
AV equipment and control£24,300
Installation£1,920
Totalabout £26,200

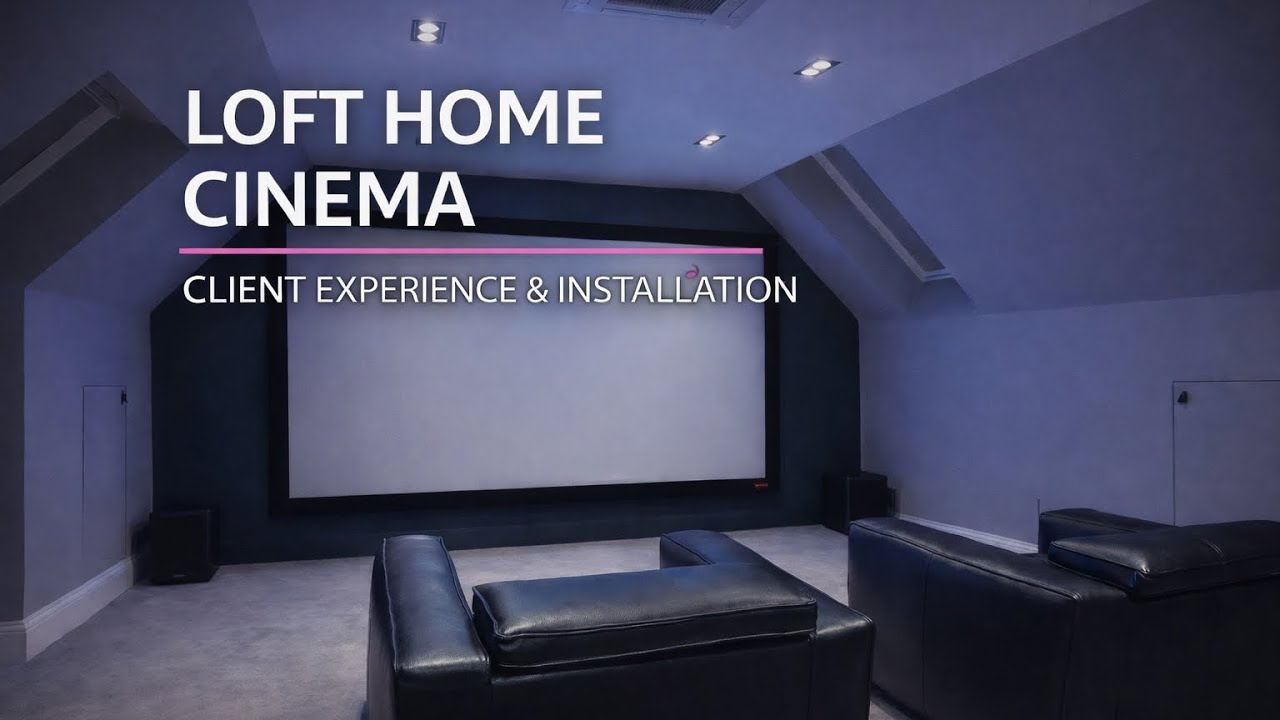

These are UK prices for this project. They don't include the loft conversion itself. For how budgets compare across other rooms, see our UK home cinema cost guide. The video tour, with the masking screen in action and the client's verdict, is in our loft cinema client walkthrough.

Frequently Asked Questions

How much did this loft cinema cost?

About £26,200 for the AV side: £24,300 for equipment and control and £1,920 for installation. These are UK prices for this project. The building work for the loft conversion, done by Charles Grosvenor, is separate, and the recliner seats were supplied by the client.

What does 5.2.4 mean in this room?

Five speakers at ear level, two subwoofers and four height speakers for Dolby Atmos. The front left, centre and right are M&K IW950 in-wall speakers, the two surrounds and four height speakers are M&K IW85s, and two M&K V10 subwoofers handle the bass. A Denon AVR-X3700H receiver powers them all.

Where does the equipment go in a loft cinema?

In this loft, the AV rack is hidden in the void spaces under the eaves, so the room has no equipment cabinet. Eaves voids are often unused in a loft conversion, but any rack placed there needs ventilation and a way to reach the back of the equipment for service.

Can one loft hold both an office and a cinema?

Yes. This loft was divided into a home office and library, and a separate entertainment room with the projector, screen and 5.2.4 sound. As a general rule, separating the two lets the cinema side be fully darkened while a work space keeps its daylight.
