Barnt Green, Worcestershire

Triple Garage Cinema Conversion

System
7.2.4 Dolby Atmos
Sony 4K laser, 3.5 m
Investment
about £44,690

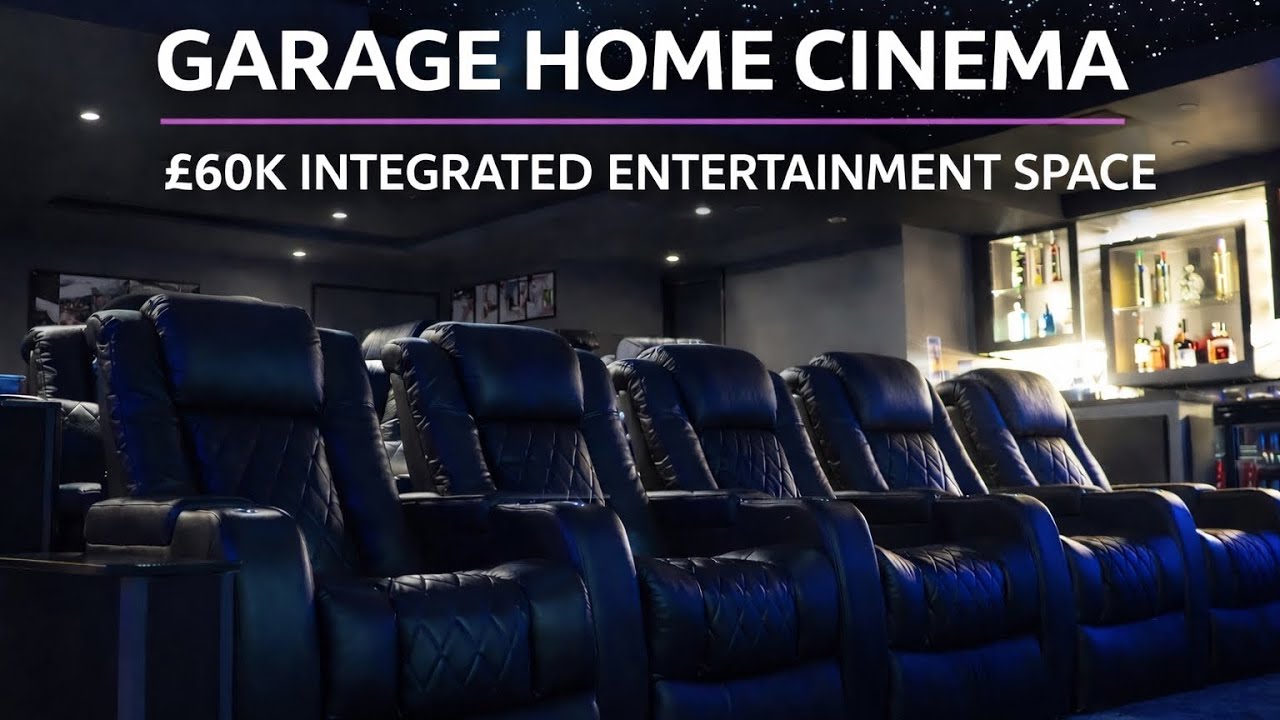

This triple garage in Barnt Green, Worcestershire, was converted into an eight-seat home cinema with a bar, a games room with a pool table, a plant room and a toilet. The cinema has a Sony 4K laser projector on a floor-to-ceiling screen about three and a half metres wide, a 7.2.4 Dolby Atmos layout of M&K Sound speakers, and Control4 running the lighting, heating and AV. The total was about £44,690.

The brief: one garage, several rooms

A triple garage is a lot of floor space, and here it was split into a full entertainment suite rather than one large cinema. The plan has four parts:

  • ▪a cinema with eight motorised seats on two tiers, with the seating supplied by the client;
  • ▪a bar, with soft LED lighting that can be controlled from a phone;
  • ▪a games room with a pool table;
  • ▪a plant room for equipment, and a toilet.

Giving the equipment its own room is a sensible move in a conversion this size. In general, it keeps fan noise out of the cinema and gives the integrator one place to service everything. Air conditioning was added too, which any sealed, fully dark room with a projector and a room full of people will need.

Seating and sightlines

The screen runs from floor to ceiling and is about 3.5 metres wide. With a screen that size, the seating layout matters as much as the kit. The front row was set far enough back that viewers can take in the whole picture without turning their heads. The second tier was raised high enough that nobody's head blocks the view from the back row.

Sound and picture

PartWhat was fitted
ProjectorSony 4K laser, built into a coffered ceiling
ScreenFloor-to-ceiling, acoustically transparent, about 3.5 m wide
Front left, centre and rightM&K IW150 in-wall, behind the screen
Subwoofers2 × M&K C15 custom subwoofers, concealed
Speaker layoutM&K Sound, 7.2.4 Dolby Atmos
AV receiverAnthem MRX 1140
ControlControl4 for lighting, heating and AV

The screen is acoustically transparent, so the front speakers and subwoofers sit hidden behind it. The surround speakers are hidden behind fabric wall panels, which also cut down reflections in the room. In a room this size, bass management is the key point. The subwoofers need to be big enough to give the low, physical bass of a film soundtrack across both rows, not only at one seat.

A laser projector suits a room used for more than films. It turns on quickly and is bright with deep blacks, which works for gaming and TV box sets as well as films.

Finishes and lighting

The fabric panels are divided by colour-changing LED strips, and the ceiling is a Starscape fibre-optic star ceiling. Fabric, lighting and star ceiling were costed as a separate line, at £10,750.

What it cost

ItemCost
AV equipment and Control4£22,000
Fabric, lighting and star ceiling£10,750
Installation and calibration£11,940
Totalabout £44,690

These are UK prices for this project, for the cinema fit-out; no separate figure for the garage building work is given here. For what a garage conversion costs from the shell up, including planning questions, see our garage cinema conversion cost guide. The video tour of the finished room is in our garage cinema conversion walkthrough.

Frequently Asked Questions

How much did this triple garage cinema cost?

About £44,690 for the cinema fit-out. That was £22,000 for AV equipment and Control4, £10,750 for the fabric walls, lighting and star ceiling, and £11,940 for installation and calibration. These are UK prices for this project. No separate figure for converting the garage structure is given here.

What does 7.2.4 mean in this room?

Seven ear-level speakers, two subwoofers and four height speakers for Dolby Atmos. Here the front three are M&K IW150 in-wall speakers behind the screen, the subwoofers are a pair of M&K C15 custom models, and the surround speakers are hidden behind the fabric wall panels.

Where do the speakers go with a floor-to-ceiling screen?

Behind it. The screen is acoustically transparent, so sound passes through it. That lets the left, centre and right speakers and the subwoofers sit on the screen wall, with dialogue coming from the picture, and nothing visible around the screen.

Can a garage cinema include a bar and games room?

Yes, if the garage is big enough. This triple garage holds an eight-seat cinema, a bar, a games room with a pool table, a plant room and a toilet. Control4 runs the lighting, heating and AV, so each area can be set up from one system.
